High Fidelity

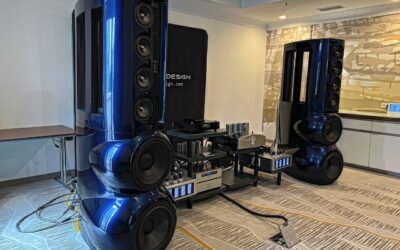

Hybrid speaker systems, in which planar magnetic speakers are used for the mid-high range and cone speakers are used for the low range.

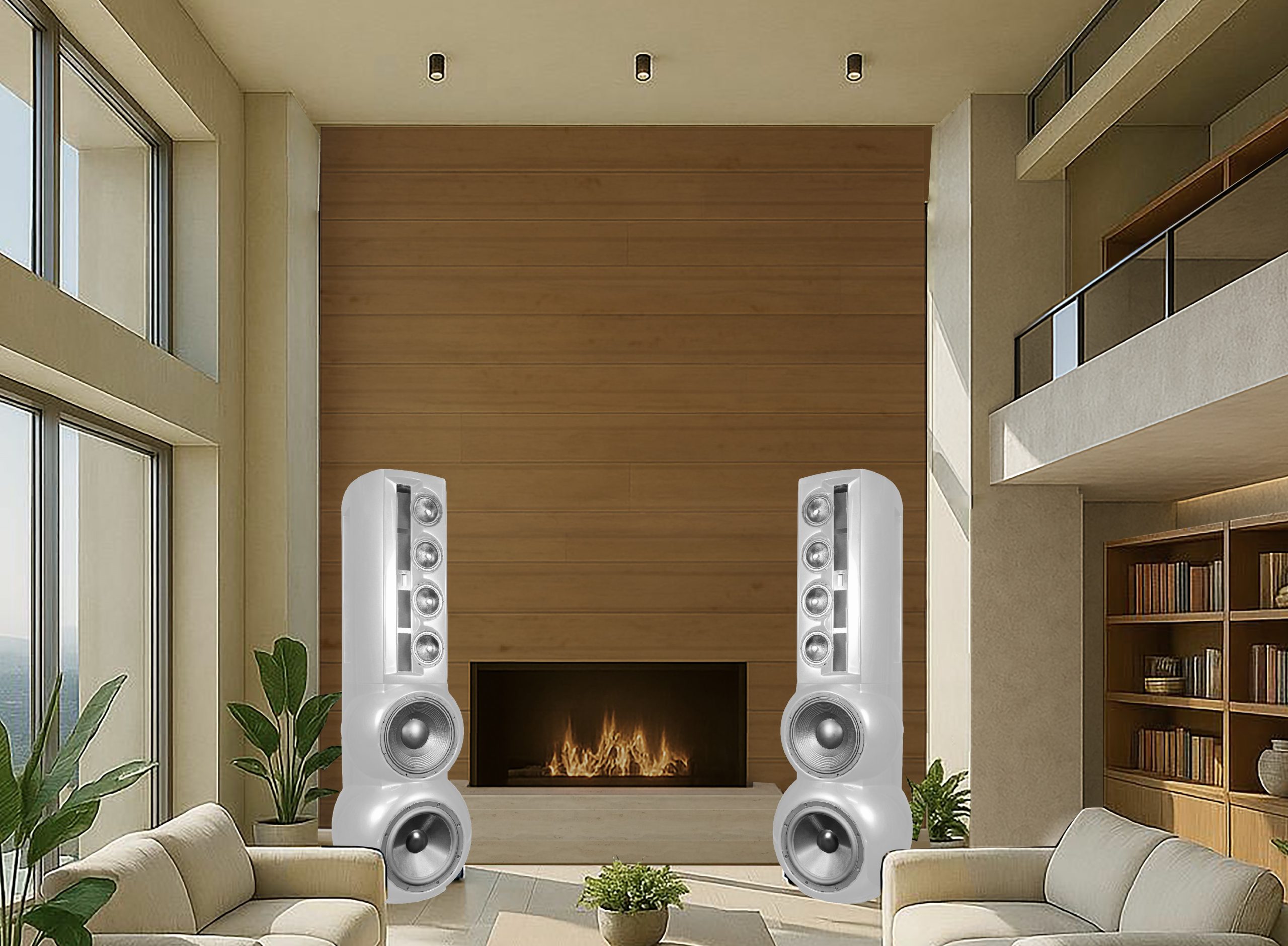

5-way design, an uncompromising speaker, evoking a sound reminiscent of the most sophisticated “Full Range” systems. Dynamic extension at both ends of the frequency range. Powerful sound pressure without any compression, hardness, or listener fatigue.
 |
 |
 |
All of this has been made possible by utilizing a hybrid speaker design that incorporates a specialized 42 cm custom driver tuned to 16 Hz for the low-frequency range. It is paired with a properly cross-matched 38 cm woofer, both housed in separate chambers and volumes within the same cabinet to ensure maximum extension, articulation, and the necessary punch to reproduce every single tone of the lowest frequencies without delay, ranging from large orchestral percussion to the lowest octave of organ pedals.
From 250 Hz and above, the speakers will be used as dipoles. They will be coupled with an array of four 16.5 cm cone mid-woofers from Res Audio, with a high cut-off frequency at 600 Hz.
No crossover frequency cuts will be employed from 600 Hz up to 20,000 Hz, and four planar magnetic speakers will be used for the mid-high range to guarantee absolute coherence and transparency of sound in the most sensitive area to the human ear, even at extreme volumes. This solution ensures remarkable linearity in this frequency range, allowing the amplifiers to drive the speakers effortlessly.
An optional ribbon super tweeter completes the ultra-high range.
The speaker is constructed with reinforced synthetic resin, ensuring solidity and power.

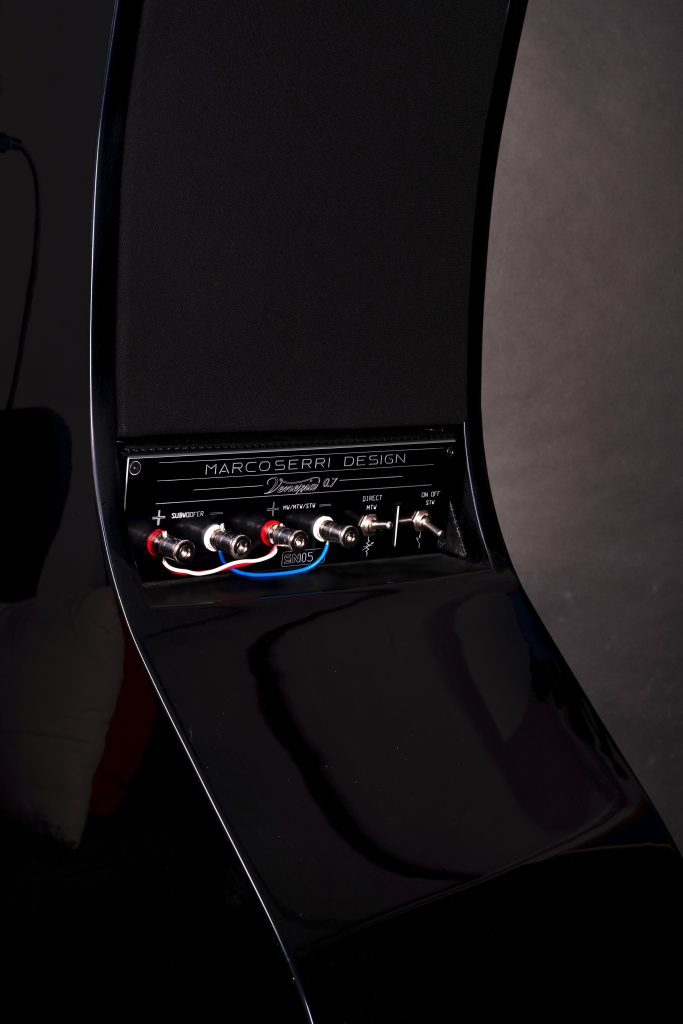

The crossover is housed in a separate and decoupled frame, equipped with external controls for adjustments to various environmental conditions.
To ensure full enjoyment of the reproduced music, the refined aesthetic finish is complemented by a special artisanal hand-painted coating.
SPEAKER CONFIGURATION
5-way – Bi-Wiring / Bi-Amp ready
CROSSOVER FREQUENCIES
0–50 Hz / 50–150 Hz / 150–600 Hz / 600 Hz–20 kHz / 14–30 kHz
FREQUENCY RESPONSE
15 Hz – 30 kHz
SENSITIVITY
96 dB (1W @ 1m)
IMPEDANCE
4 ohms – nearly resistive up to 600 Hz
SELECTABLE RESPONSE MODES
– Linear/attenuated via switch
– Woofer: Normal / Attenuated
– Mid-Woofer: 3 positions (Direct / Atten. Min / Atten. Max)
– Mid-Tweeter: 3 positions (Direct / Atten. Min / Atten. Max)
– Super-Tweeter: Activated / Deactivated
DRIVERS
– 1 Subwoofer – 42 cm (16.5″)
– 1 Woofer – 38 cm (15″)
– 4 Mid-Woofers – 17.5 cm (6.7″)
– 4 Planar Mid-Tweeters – H 20 cm
– 1 Ribbon Super-Tweeter
DIMENSIONS
H 200 cm (78.7″) – W 67 cm (26.4″) – D 102 cm (40.2″)
WEIGHT
250 kg (551 lbs)
FINISH
Standard: Dark Blue Electric Metal, Red Cherry
Custom colors available on request
Built from a single-piece monocoque structure, its cabinet is digitally sculpted for maximum rigidity and acoustic purity.
Inspired by motorsport design, merges aerodynamics and acoustics into a loudspeaker that is technically advanced and visually iconic.
 |
 |
 |

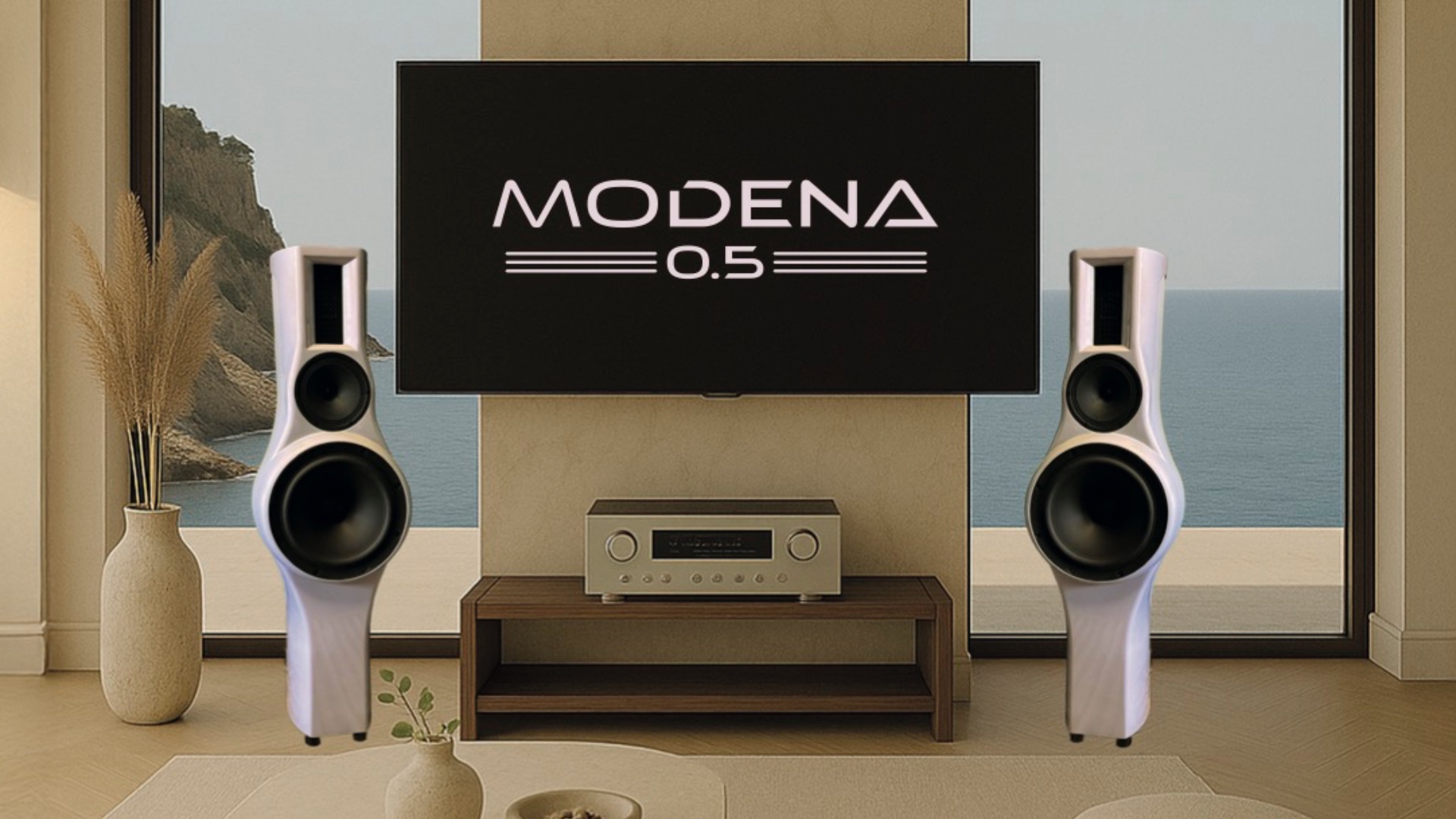

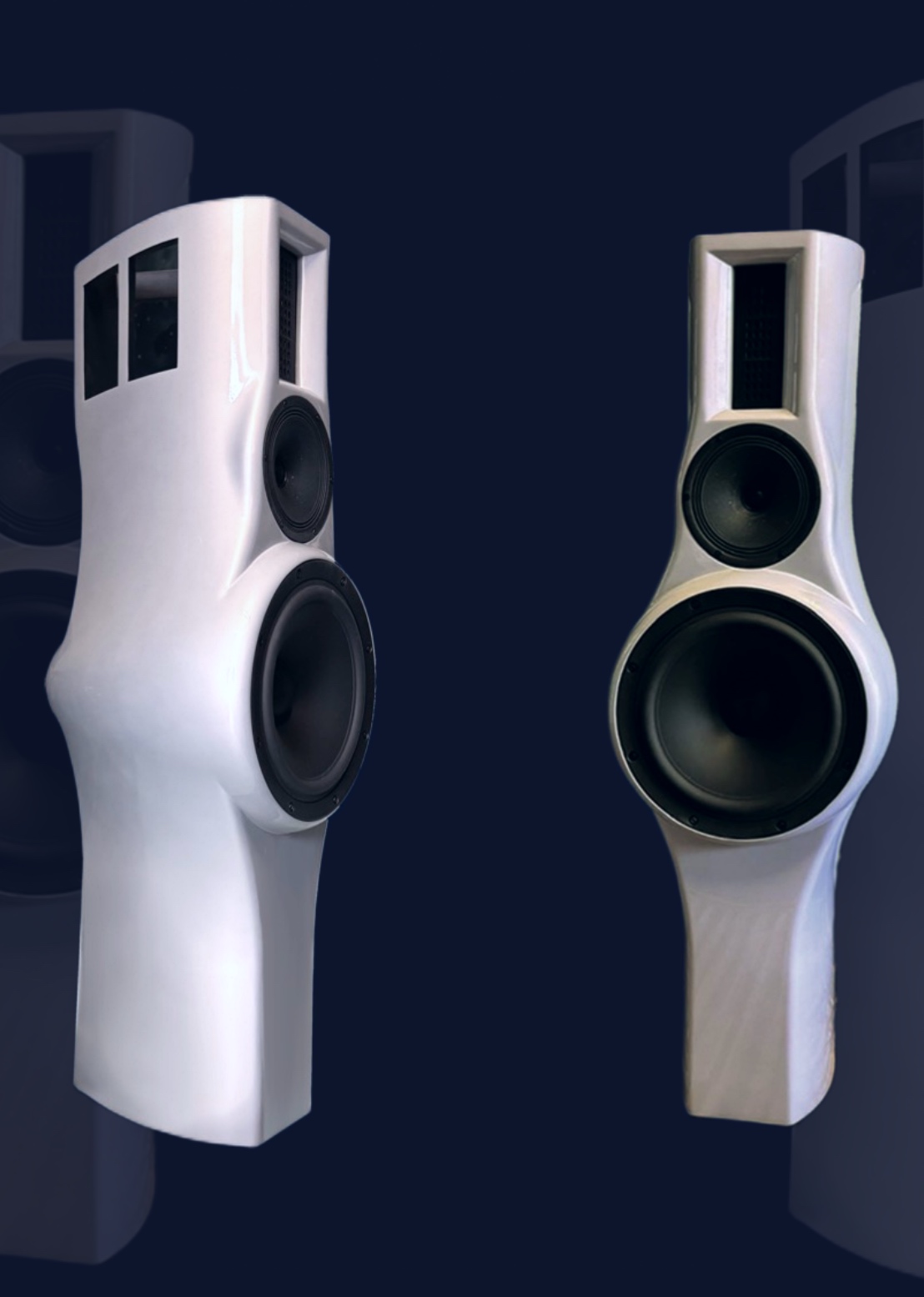

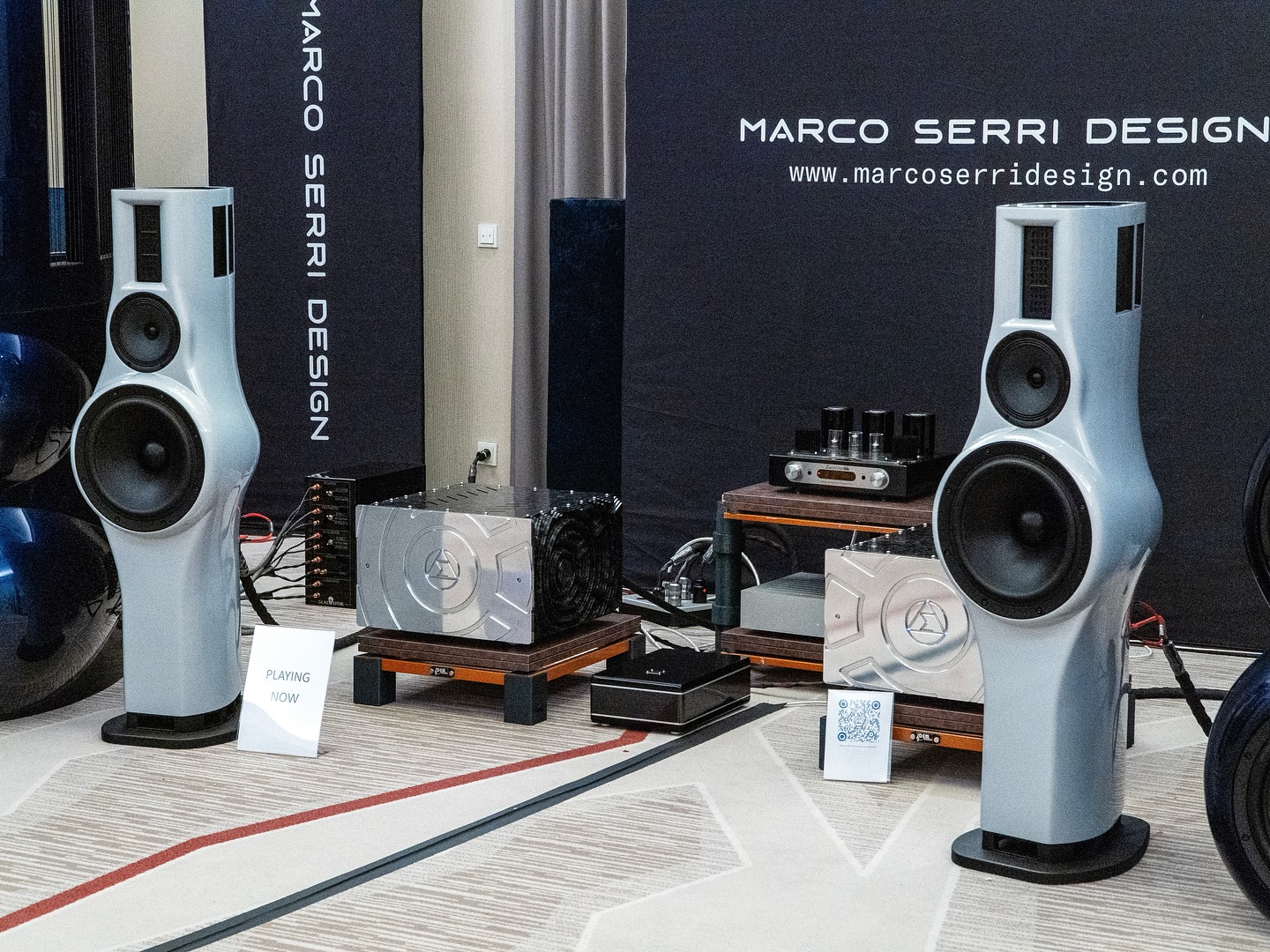

A 3-way hybrid dipole loudspeaker, designed for immersive soundstaging and architectural precision. Built from a single-piece monocoque structure, its cabinet is digitally sculpted for maximum rigidity and acoustic purity. The organic, aerodynamic shape is not just visual it’s engineered to minimize diffraction, enhance phase coherence, and optimize sonic dispersion. Inspired by motorsport design, Modena merges aerodynamics and acoustics into a loudspeaker that is both technically advanced and visually iconic.
3-Way Hybrid Dipole Speaker
Uncompromising acoustic engineering
This speaker is the result of a clear vision: to offer a sound totally free from colorations, refractions and physical limits.
It is a 3-way hybrid dipole system, entirely built in high-density resin, a material chosen for its exceptional rigidity and damping qualities, capable of ensuring an acoustically neutral base for each transducer.
Speakers
• 34 cm woofer: Deep, fast and controlled bass.
• 19 cm mid-woofer: Medium-low range rich in detail and timbre coherence.
• Magnetoplanar dipole tweeter: Crystalline extension of the highs with wide and natural spatial dispersion.
Cabinet – Functional design for perfect dispersion
The sinuous shape, sculpted with flowing roundness and precise tapering, is not just aesthetic.
It is designed to eliminate any physical barrier to sound, promoting an exceptionally uniform polar response on both the horizontal and vertical axes. The result is an open, three-dimensional soundstage, where the speaker disappears and leaves room only for the music.
Exponential horn bass reflex: power and precision
At the base of the speaker, a horn-shaped bass reflex accord optimizes the performance in the low range:
• Increases the efficiency of the woofer;
• Minimizes turbulence and distortion;
• Extends the bass response with greater timbre coherence.
The exponential geometry of the duct guarantees a fluid and controlled release of air, for deeper, more articulated and dynamic bass.
A listening experience that sees the speakers disappear
The sound is released into the environment without obstacles, in a natural and enveloping way. This speaker is not just a design object, it is a musical instrument capable of exciting with every listen.

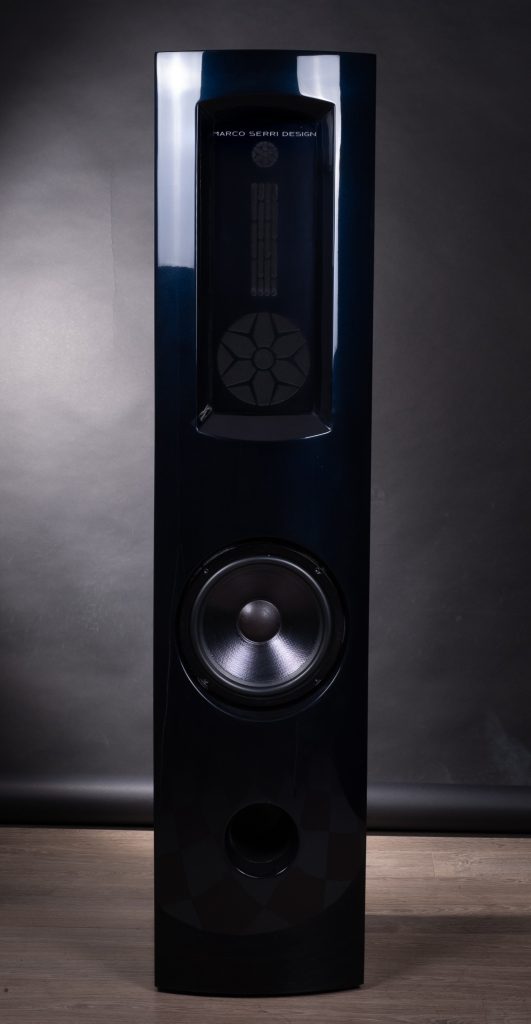

MSD has created the “Hybrid” line of speakers that uses a combination of dipole emission and bass reproduction using cone speakers (woofers) in reflex enclosure. This allows for excellent sound performance in both high and low frequencies.
 |
 |
 |
 |
 |
The hybrid sound reproduction system presents a fundamental challenge: to seamlessly and harmoniously unite two different types of speakers. Many manufacturers have encountered difficulties in this aspect, but after years of research and experimentation, MSD has succeeded in having dedicated cone speakers (woofers) made to reproduce the low frequency range.
These speakers, characterized by compact size and low weight, are equipped with high-power magnets and special membranes that skillfully integrate the two emissions. In this way, the goal of harmoniously connecting the critical junction point between the deep and energetic low frequency range and the speed and transparency of the mid-high frequency range has been achieved, “magically” eliminating the gap between the two types of speakers.

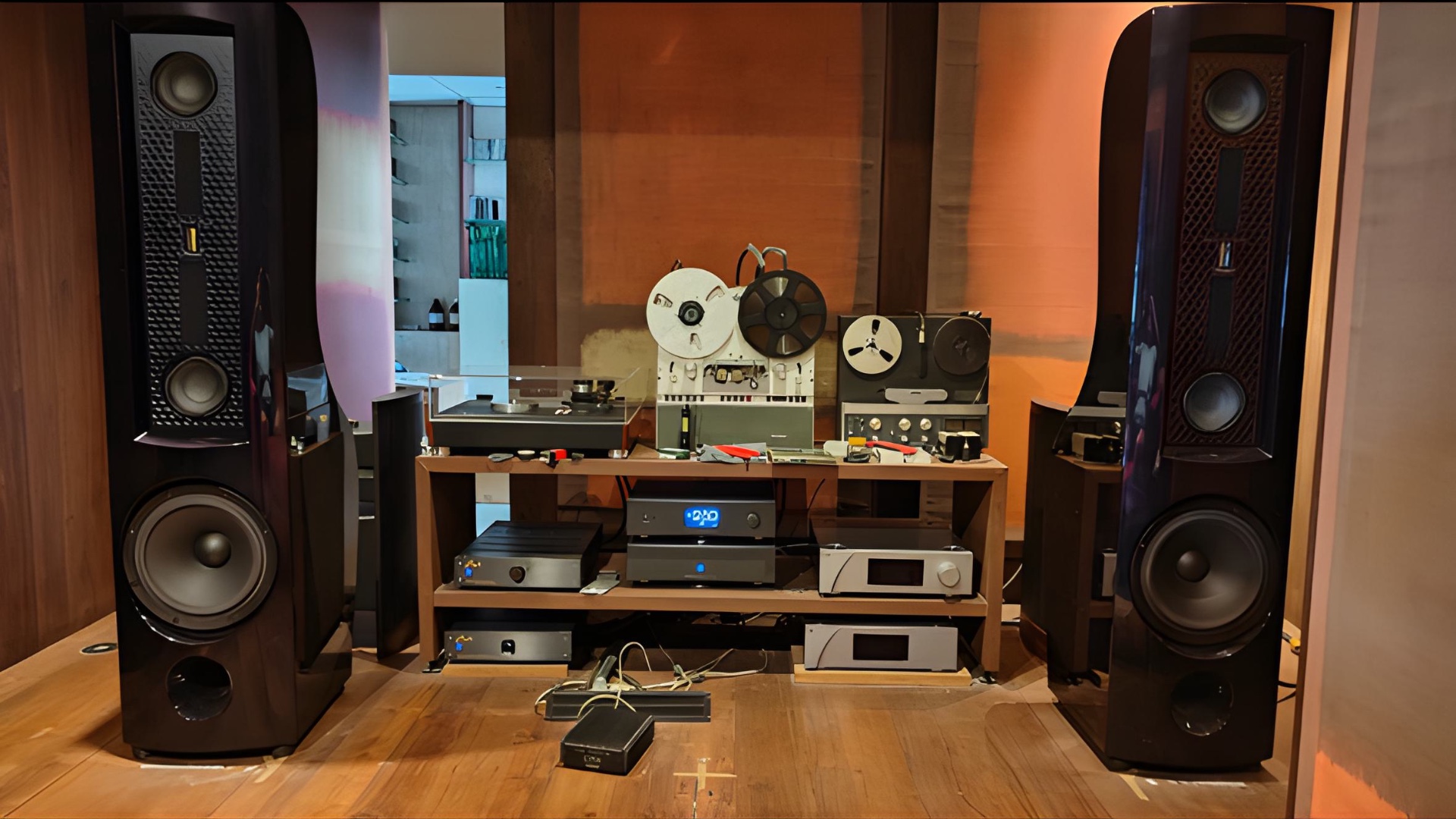

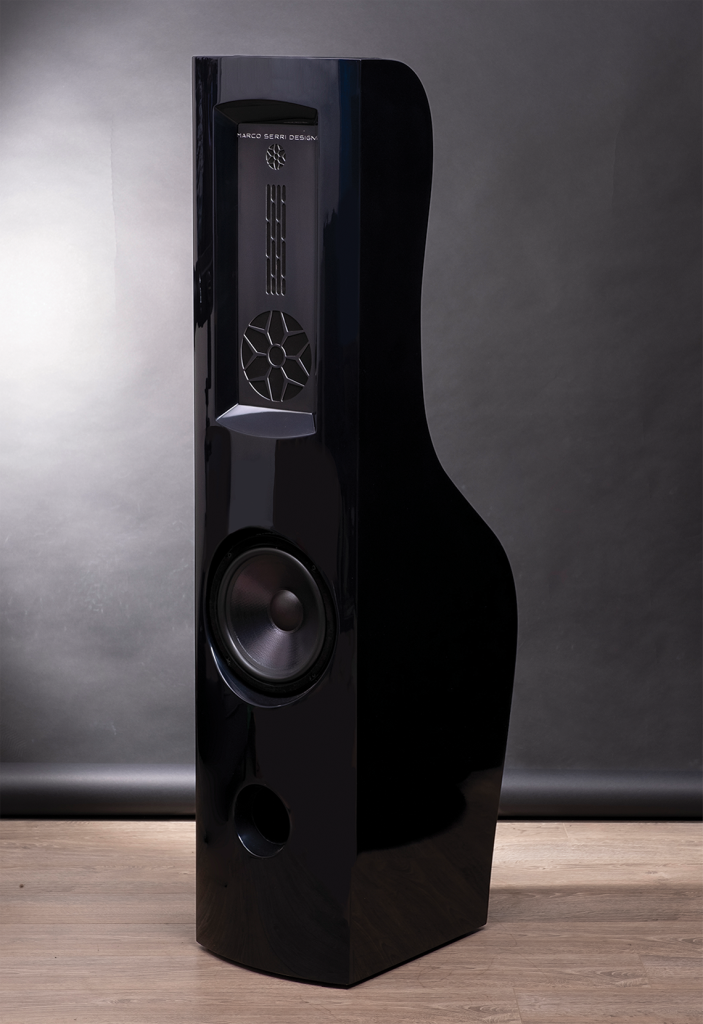

The “VENEZIA” hybrid speaker line consists of three models that differ in the number of speakers used, size and weight, as well as the number of ways (3-way for the Venezia 0.5, 4-way for the Venezia 0.7 and Venezia 1.0).
VENEZIA 0.5 | VENEZIA 0.7 | VENEZIA 1.0
SPEAKER CONFIGURATION
3 way – Possibility for Biwiring / BiAmp
Crossover
0-300Hz/300Hz-2,6KHz/2,6KHz-20KHz
FREQUENCY RESPONSE
28Hz to 20Khz +/-3db
SENSITIVITY
90,5 dB 1watt 1 meter
INPUT IMPEDANCE
6 ohms almost resistive up to 1000 Hz
POSSIBILITY LINEARZE ON SELECTOR TO SWITCH
No
MIDTWEETER DIRECT OR ATTENUATED
No
MIDTWEETER 3 POSITIONS (Direct Atten. Min, Atten. Max)
No
STWEETER. ACTIVATED OR DEACTIVATED
No
LOW FREQUENCY TRANSDUCER
1 Woofer 22cm – 8,6″
MID LOW FREQUENCY TRANSDUCER
1 Mid-Woofer 17,5cm – 6,7″
TWEETER TRANSDUCER
1 Mid-Tweeter Planar, 20cm
SUPER TWEETERS TRANSDUCER
No
DIMENSIONS
L. 28cm – H. 133cm – P. 40cm
SYSTEM WEIGHT
1 Speaker = 33 kg, 1 Speaker = 70 ibs
FINISH (Standard / Custom)
Deepd cosmos blu metal, Rosso ciliegia vignola, Silver/Gold leaf, Custom color
SPEAKER CONFIGURATION
4 way – Possibility for Biwiring or BiAmp
Crossover
0-300Hz/300Hz-2,6KHz/2,6KHz-20KHz
FREQUENCY RESPONSE
27Hz to 35KHhz +/-3db
SENSITIVITY
91 dB 1watt 1 meter
INPUT IMPEDANCE
8 ohms almost resistive up to 1000 Hz
POSSIBILITY LINEARZE ON SELECTOR TO SWITCH
Yes
MIDTWEETER DIRECT OR ATTENUATED
Yes
MIDTWEETER 3 POSITIONS (Direct Atten. Min, Atten. Max)
Yes
STWEETER. ACTIVATED OR DEACTIVATED
Yes
LOW FREQUENCY TRANSDUCER
1 Woofer 27cm – 10,6″
MID LOW FREQUENCY TRANSDUCER
1 Mid-Woofer 17,5cm – 6,7″
TWEETER TRANSDUCER
1 Mid-Tweeter Planar, 20cm
SUPER TWEETERS TRANSDUCER
1 Super Tweeter Ribbon 3,5cm – 1.38″
DIMENSIONS
L. 32cm – H. 150cm – P. 45cm
SYSTEM WEIGHT
1 Speaker = 65 kg 1 Speaker = 140 ibs
FINISH (Standard / Custom)
Deep cosmos blu metal, Red cherry, Silver/Gold leaf, Custom color
SPEAKER NUMBER WAY
4 way – Possibility for Biwiring or BiAmp
Crossover
0-300Hz/300Hz-2,6KHz/2,6KHz-20KHz
FREQUENCY RESPONSE
18Hz to 35KHhz +/-3db
SENSITIVITY
95 dB 1watt 1 meter
INPUT IMPEDANCE
8 ohms almost resistive up to 1000 Hz
POSSIBILITY LINEARZE ON SELECTOR TO SWITCH
Yes
MIDTWEETER DIRECT OR ATTENUATED
Yes
MIDTWEETER 3 POSITIONS (Direct Atten. Min, Atten. Max)
Yes
STWEETER. ACTIVATED OR DEACTIVATED
Yes
LOW FREQUENCY TRANSDUCER
1 Woofer 42cm – 16,5″
MID LOW FREQUENCY TRANSDUCER
4 Mid-Woofer 17,5cm – 6,7″
TWEETER TRANSDUCER
3 Mid-Tweeter Planar, 20cm
SUPER TWEETERS TRANSDUCER
1 Super Tweeter Ribbon 70cm – 27,5″“
DIMENSIONS
L. 46cm – H. 175cm – P. 65cm
SYSTEM WEIGHT
1 Speaker = 105 kg 1 Speaker = 185 ibs
FINISH (Standard / Custom)
Deep cosmos blu metal, Red cherry, Silver/Gold leaf, Custom color

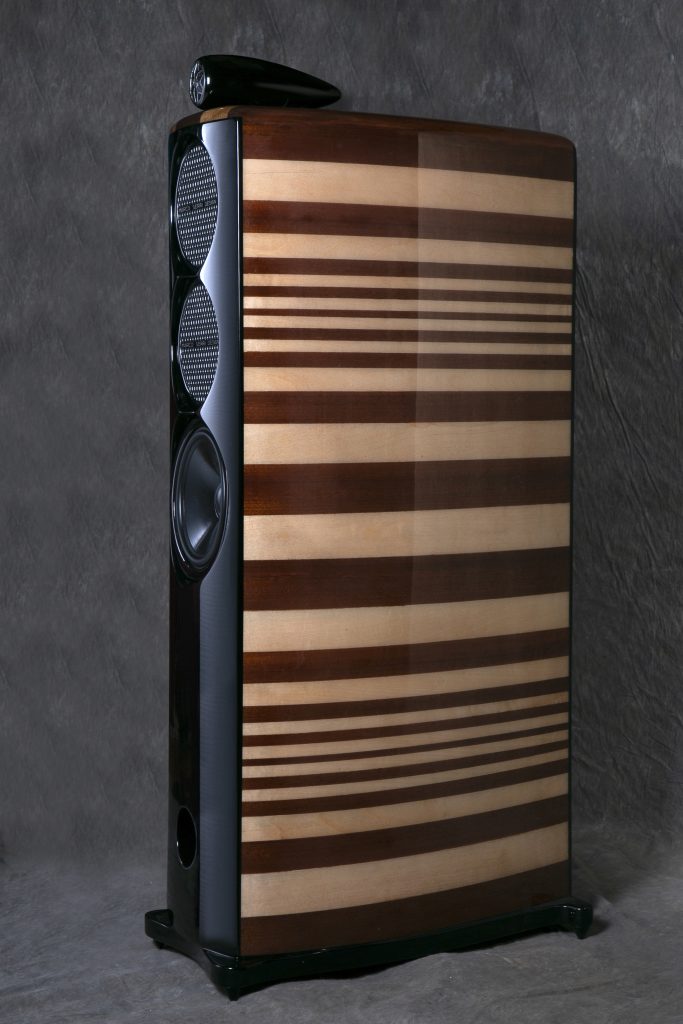

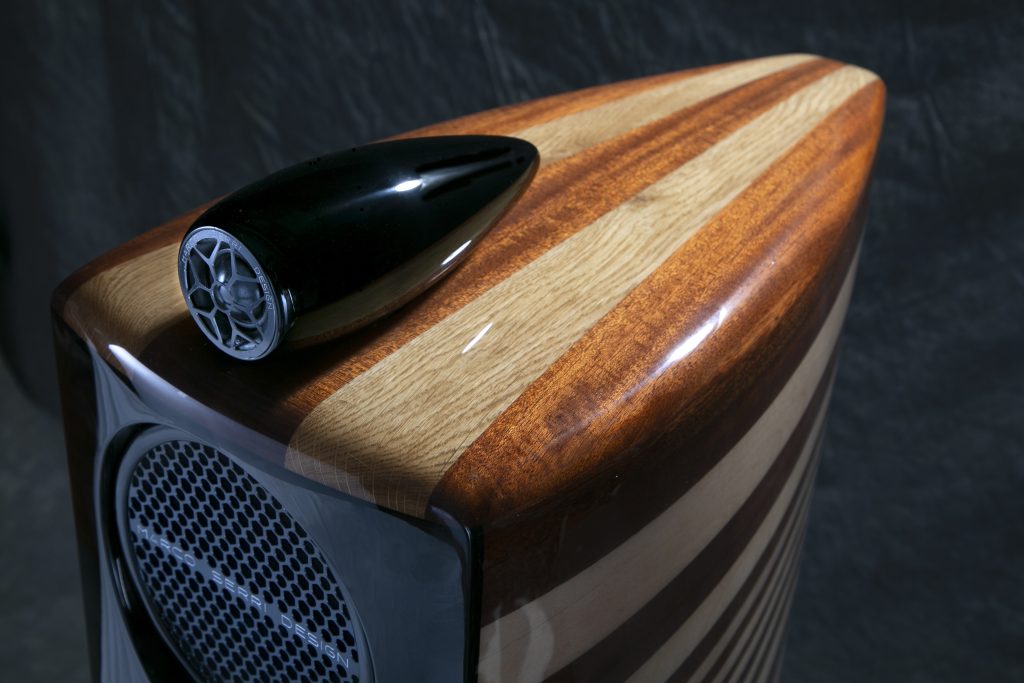

Soft and rounded lines, setting them apart from most box-shaped speakers. The craftsmanship finishes evoke high-quality objects such as wooden boats or antique musical instruments, creating a cozy and charming atmosphere.
 |
 |
 |

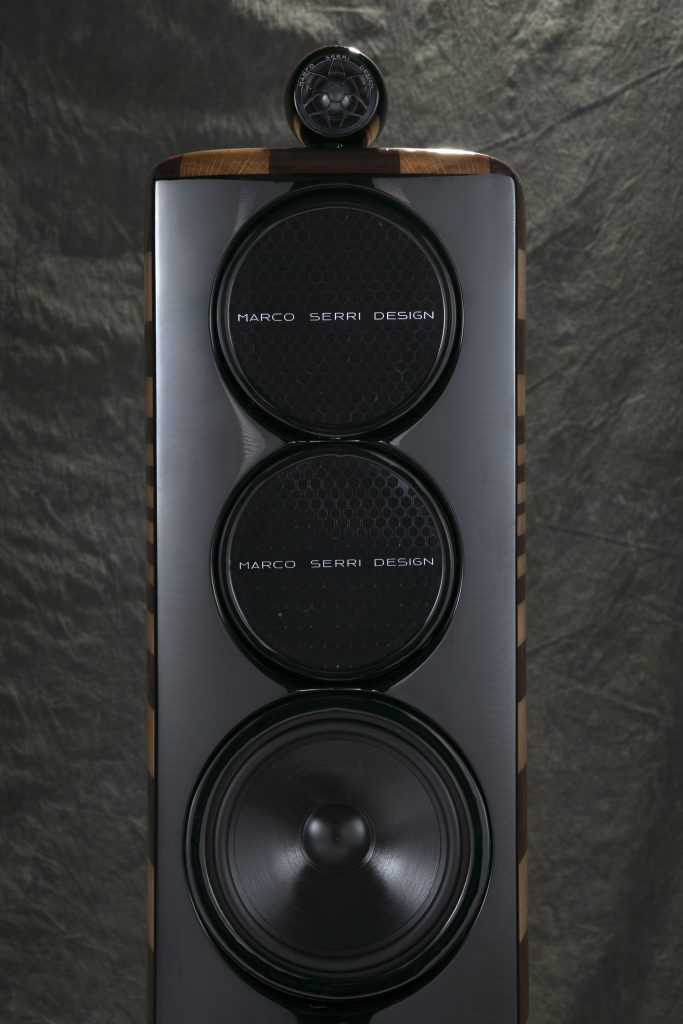

The aesthetic beauty of the speakers hides sophisticated electroacoustic solutions, including three high-quality drivers: a silk-dome tweeter enclosed in an ogive-shaped structure placed above the wooden cabinet, a high-sensitivity magnetoplanar driver for the midrange, and a woofer tuned through the use of an agile crossover located in a spacious internal chamber. Despite the speakers’ delicate lines, they surprise the listener with sound imaging reproducible only by more refined stand-mounted speakers, thanks to the use of the midrange magnetoplanar driver, which ensures high speed in transients, transparency, and richness in instrument sound, seamlessly integrating with the system’s low-frequency range.
These floor-standing speakers, despite their modest size, but with exquisite style, are particularly appreciated for the engaging listening experience they offer, satisfying even the most discerning audiophiles.
SPEAKER CONFIGURATION
3 way – Possibility for Biwiring / BiAmp
FREQUENCY RESPONSE
26Hz to 24Khz +/-3db
SENSITIVITY
92 dB 1watt 1 meter
INPUT IMPEDANCE
6 ohms almost resistive up to 1000 Hz
LOW FREQUENCY TRANSDUCER
1 Woofer 22cm – 8,6″
MID LOW FREQUENCY TRANSDUCER
1 Mid-Woofer planar custom made 17,5cm – 6,7″
TWEETER TRANSDUCER
1 dome Tweeter , 28mm
DIMENSIONS
L. 30cm – H. 123cm – P. 60cm
SYSTEM WEIGHT
1 Speaker = 75 kg
FINISH
slatted wood finish piano black custom color
MSD
The story of Marco Serri begins in the Motor Valley, in the garage of a town in the province of Modena, Guiglia.
As a very young man, Marco was influenced by the atmosphere of research and experimentation typical of his homeland, being struck by the world of electronics and deciding to devote himself to his first constructions for amateur radio.
Subsequently, Marco commits himself to the production of acoustic speakers and valve electronics, and his garage becomes a workshop, a laboratory, where for 25 years he deepens, studies, and experiments with every type of electronic circuitry and modifies and elaborates all types of speakers, learning in the field the secrets of each component and the necessary techniques to elevate their performance, experimenting with the best solutions and the best materials for his creations.
Marco Serri is an artisan who builds high-end equipment with surprising performance using the best components with the goal of achieving the maximum naturalness of sound.
“Marco Serri doesn’t just create Hi-end products, each of his pieces can be compared to a work of art. Every step is designed and taken care of by Marco, from the design to the final product. Marco Serri is not just an artisan, he is a sculptor of sound.”
The design philosophy of Marco Serri Design begins with careful planning and continues with research for the best components and materials available in the market, a meticulous study of each single detail, deepened and perfected over years spent searching for the best component synergies.
The construction principle of Marco Serri Design is based on essentiality, because essentiality is what constitutes the vitality of sound. The mission is to provide the listener with an experience as intense and close as possible to that of live music listening, and to achieve this, everything is taken care of down to the smallest detail, from the project to the components to the form.
Marco Serri Design brings together the best of Italian craftsmanship, from engineering creativity to fine manual execution. Anodization, PCBs, aluminum frames, and fronts are processed using CNC machines. The procedures and techniques for painting their acoustic speakers come from experience acquired in the painting departments of nearby prestigious automotive companies, allowing them to achieve incomparable results compared to industrialized finishes.
MSD
https://www.monoandstereo.com/marco-serri-design-gladiator-speakers-experience/
MSD

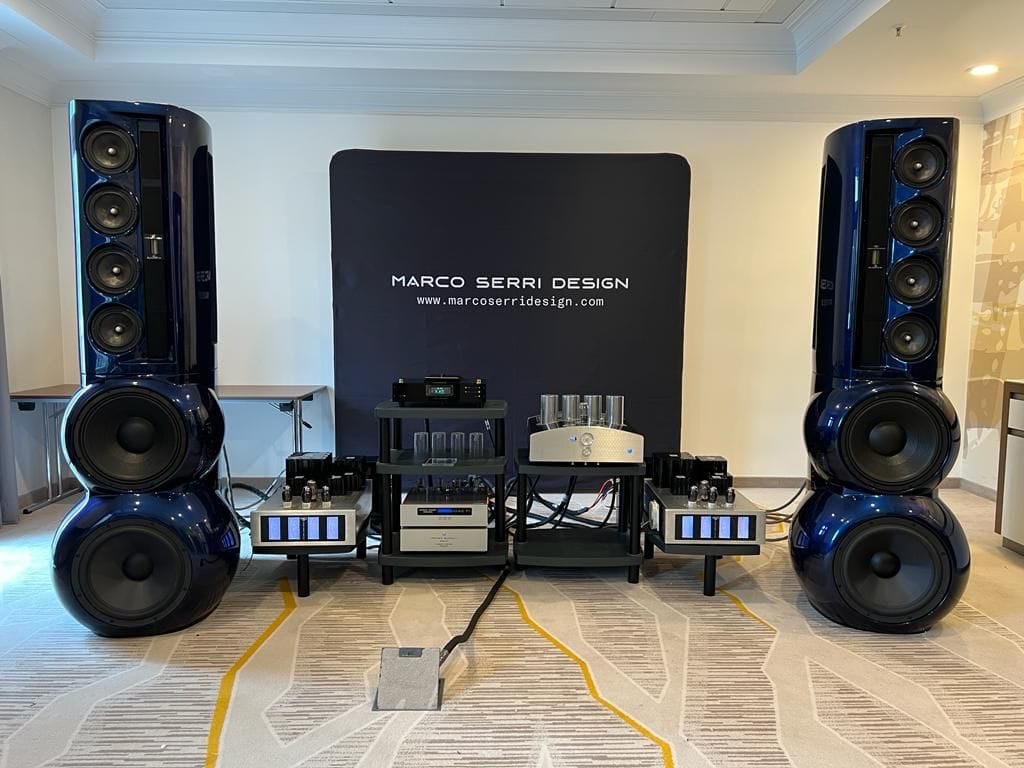

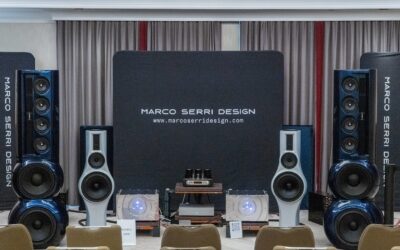

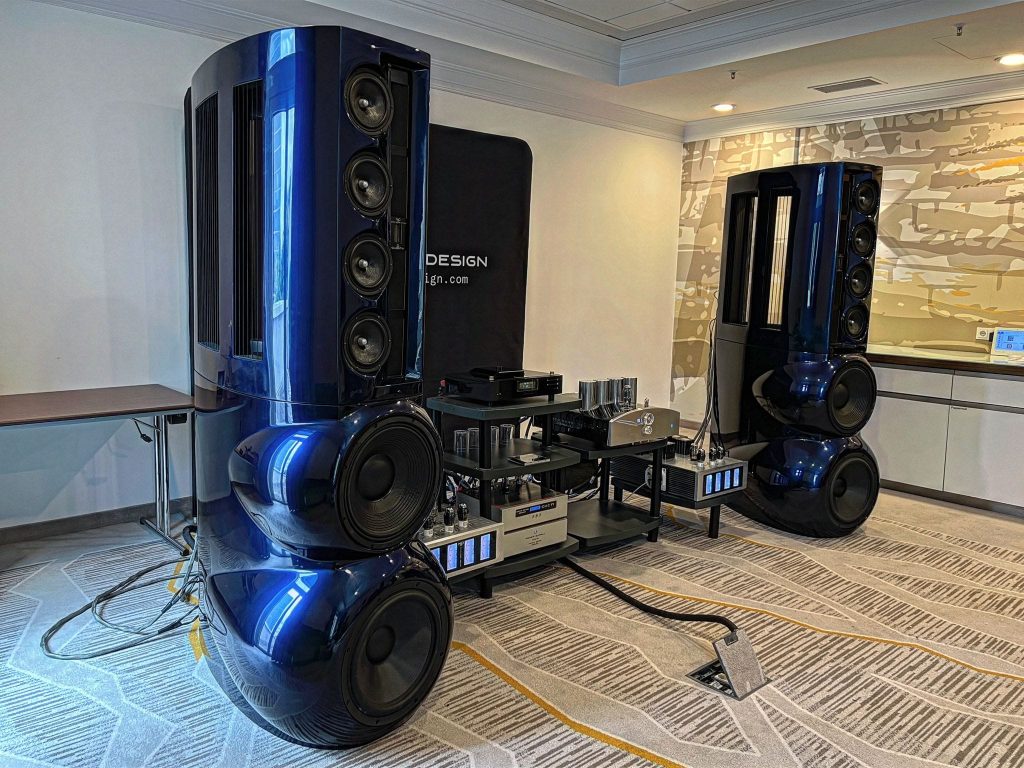

Marco Serri Design at HiFi Deluxe 2025 - Mariott hotel Munich, Salon A Our Gladiator 5-way, 2 meters tall speaker system and the new Modena 0.5 #audiophiles #audio #speakersystem #hifi #hifiaudio #hifisystem #audiosystem #hıfıdeluxe #italian #italianspeakers...
